Honeycomb Belt for a Glass Annealing Furnace
Client: A large architectural glass manufacturer.
Industry: Glass Manufacturing
Location: Midwest, USA
Challenge: The client was struggling with a continuous belt failure in their glass annealing furnace. The extreme temperatures caused the existing wire mesh belt to stretch, deform, and eventually snap, leading to costly and disruptive production line shutdowns. The company needed a durable, heat-resistant solution that could maintain its structural integrity under constant thermal stress while providing a flat, stable surface for conveying glass panels.

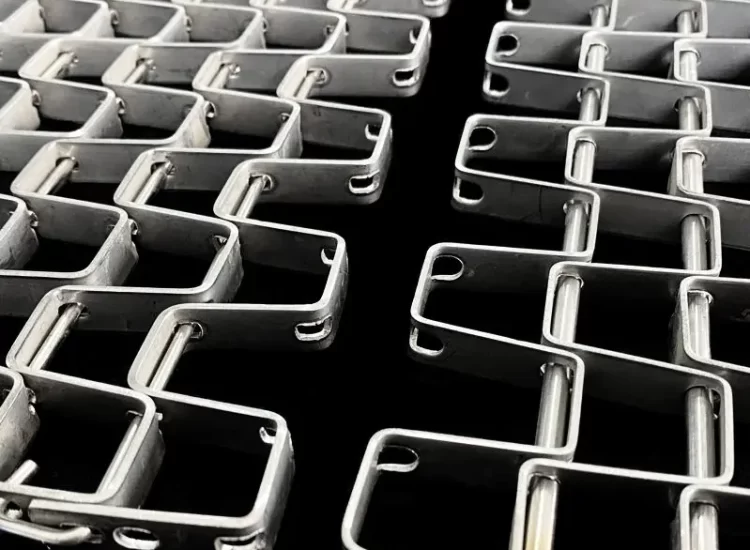

Solution: We collaborated with the client to design a customized Honeycomb Belt from high-temperature resistant alloy steel. This material was specifically chosen for its ability to withstand temperatures up to 1500°F (815°C) without significant deformation. The flat-wire construction provided an ideal surface for the delicate glass panels, preventing scratches and ensuring a smooth, consistent movement through the annealing process. A robust, sprocket-driven system was also implemented to ensure positive tracking and minimize belt wander, which is a common issue in high-temperature applications.
Results:
Enhanced Durability: The new belt showed no signs of stretching or deformation after six months of continuous operation, a vast improvement over the previous belt’s lifespan of just a few weeks.
Eliminated Downtime: The enhanced durability and reliability of the new belt completely eliminated unscheduled maintenance and production downtime.
Improved Product Quality: The stable, flat surface of the belt prevented imperfections on the glass panels, leading to a higher quality product and reduced waste.
Cost Efficiency: The elimination of frequent belt replacements and a reduction in maintenance man-hours resulted in significant long-term cost savings.
